Connections

Once your Profiles are set up to your liking, it's time to add your Radarr and Sonarr connections. This allows Trailarr to communicate with your *Arr instances, discover your media, and manage trailers.

Setting up a connection involves three main steps:

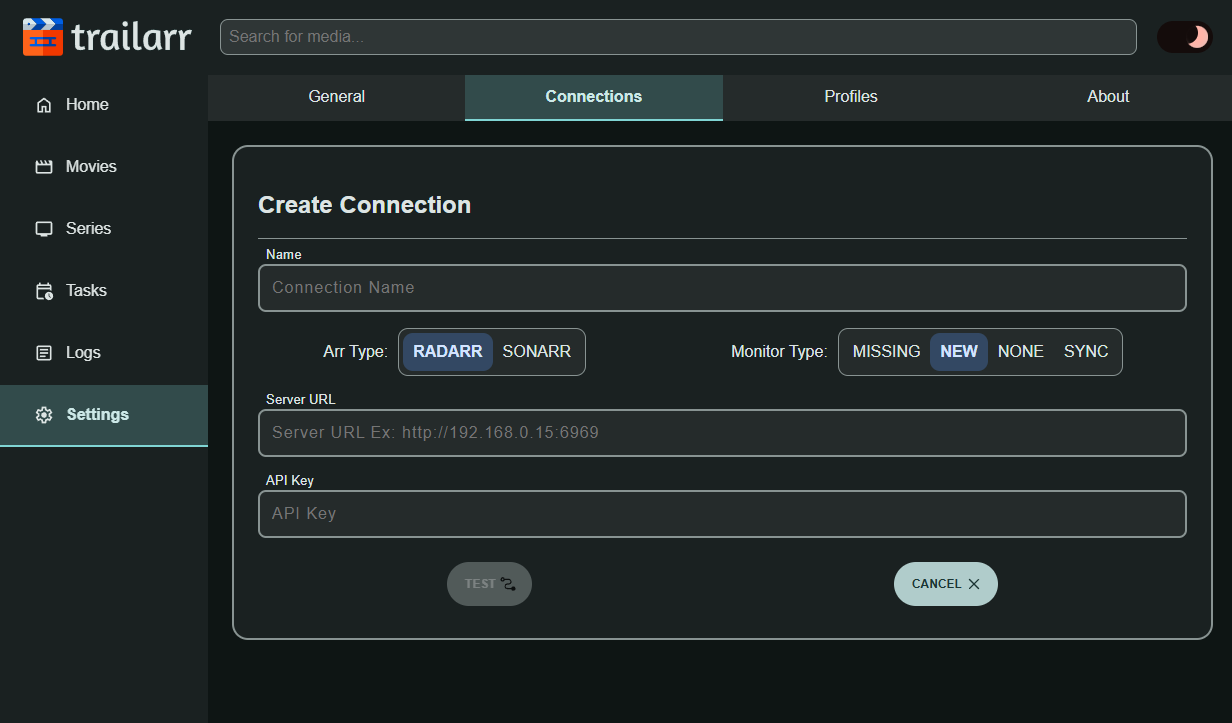

1. Connection Details

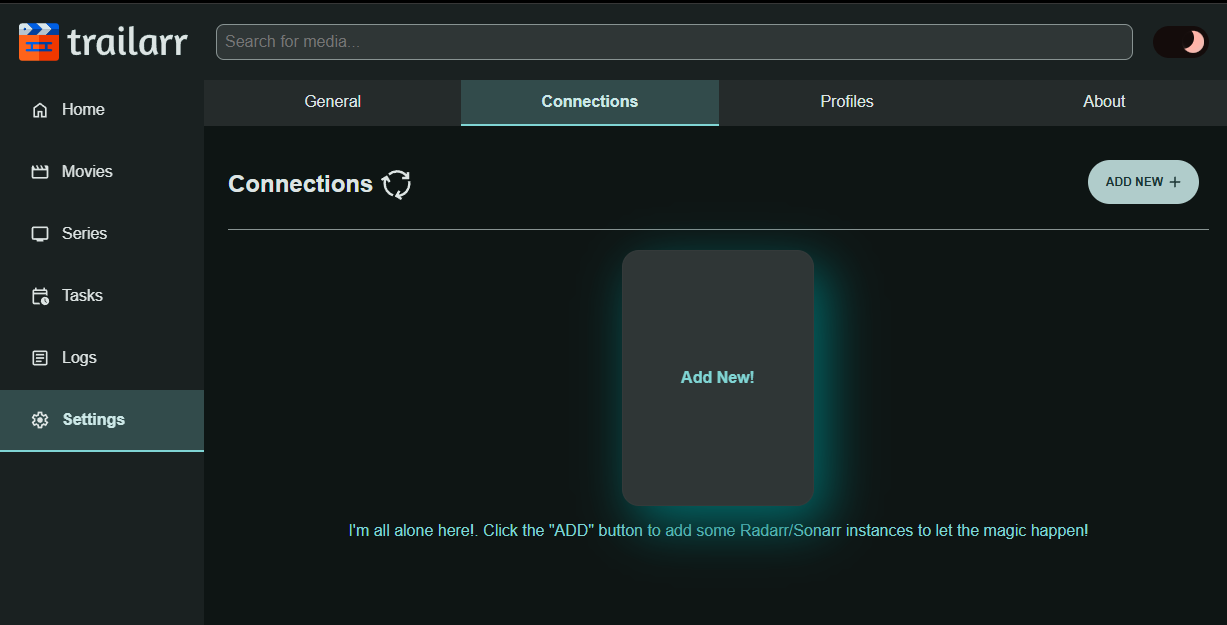

Navigate to Settings > Connections.
Click on Add New button.
Fill in the basic details for your *Arr instance (e.g., Radarr or Sonarr):
- Name: A friendly name for this connection (e.g., "Main Radarr", "4K Sonarr", or simply "Radarr"). I am adding a Radarr connection, so I named it Radarr
- Arr Type: Select Radarr or Sonarr. It's already set to Radarr by default, so I didn't change it.
- Monitor Type: Choose which Media items Trailarr needs to monitor from this connection.
- Server URL: The full URL of your *Arr instance. Eg: http://192.168.0.15:6969

  Do NOT use localhost

  Do not use localhost as there are numerous problems with that and it might not always work!

  Instead use a static IP address
- API Key: Your API key from Radarr/Sonarr (found in its Settings > General section).
- Once these details are filled in, the Test button will become available, click the button.
- Trailarr will attempt to connect to the *Arr API. Upon a successful connection:
- The Arr API version will be displayed.
- Trailarr will automatically fetch the root folders configured in that *Arr instance.

If the connection fails, an error will be shown with details, correct them and click Test again!

2. Path Mappings

After a successful initial test, Trailarr needs to know how to access the media files managed by this Arr instance. This is where you map the root folders reported by the Arr API to the paths where Trailarr can find them.

Remeber the Volume Mappings we set during installation, we use them here!

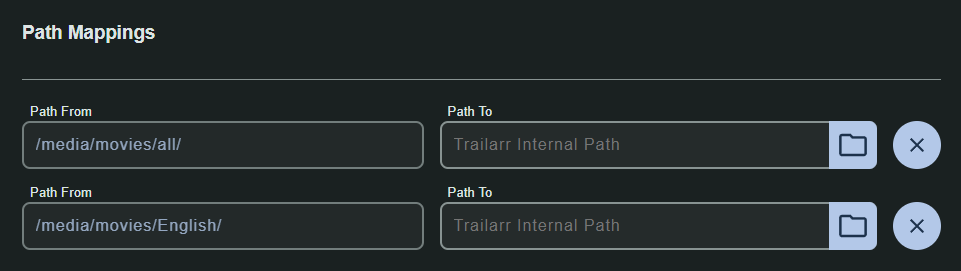

For each root folder retrieved from the *Arr instance, you'll see a "Path From" and a "Path To" field.
- Path From (read only): This is the root folder path as known by your *Arr instance (e.g., /movies or /tv). This field is usually read-only.
- Path To: This is where you tell Trailarr to find the contents of that "Path From" folder within Trailarr's own file system (i.e., inside its Docker container).
Use the 📁 icon next to the text input field for Path To, a dialog will open showing files and folders inside Trailarr container, navigate to the folder for the Path To and click Confirm.
You can Delete a Path Mapping by clicking on the X button next to it!
- It is NOT recommended to delete them unless you know what you are doing!
- You can remove it if your Path From is same as Path To.
- You can leave them there even if Path From = Path To.
We have some examples (the same ones from Docker Compose):
Examples 1 & 2 - TRaSH Guides - SAME path as Radarr/Sonarr

If you used a volume mapping that is SAME as Radarr/Sonarr in Trailarr then Path To is same as Path To:
```

```
OR href="#__codelineno-0-1">services: radarr: image: ghcr.io/hotio/radarr:latest # Other options here volumes: - /docker/appdata/radarr:/config class="w"> - /data:/data # Other options here sonarr: image: ghcr.io/hotio/sonarr:latest # Other options here volumes: - /docker/appdata/sonarr:/config class="w"> - /data:/data # Other options here trailarr: image: nandyalu/trailarr:latest # Other options here volumes: - /docker/appdata/trailarr:/config class="w"> - /data:/data # Other options here
```
services:
  radarr:
    image: ghcr.io/hotio/radarr:latest
    # Other options here
    volumes:
      - /docker/appdata/radarr:/config
      - /mnt/movies_disk/media/movies:/media/movies
    # Other options here
  sonarr:
    image: ghcr.io/hotio/sonarr:latest
    # Other options here
    volumes:
      - /docker/appdata/sonarr:/config
      - /mnt/series_disk/media/tv:/media/tv
    # Other options here
  trailarr:
    image: nandyalu/trailarr:latest
    # Other options here
    volumes:
      - /docker/appdata/trailarr:/config
      - /mnt/movies_disk/media/movies:/media/movies
      - /mnt/series_disk/media/tv:/media/tv
    # Other options here
```
The folder dialog might already in the folder you are looking for, just press Confirm!
Example 3 - DIFFERENT path than Radarr/Sonarr

If you used a volume mapping which is DIFFERENT than what you had in Radarr/Sonarr, meaning - we changed the actual location of where the media files are present, so we need to tell Trailarr where to find them:
```
# USE THIS INSTEAD
radarr:
  # other config
  volumes:
    - /mnt/disk1/media/movies:/data
sonarr:
  # other config
  volumes:
    - /mnt/disk2/media/tv:/data
trailarr:
  # other config
  volumes:
    - /mnt/disk1/media/movies:/data/movies # <-- MODIFIED
    - /mnt/disk2/media/tv:/data/tv # <-- MODIFIED
```
- The root folder for Radarr connection is /data/movies or under that folder!
- The root folder for Sonarr connection is /data/tv or under that folder!
Navigate to the folder and press Confirm!

So, when Trailarr gets a Movie folder path it will use the Path Mapping to convert it like this
```
Radarr Media Path: '/data/The Matrix (1999)'
Trailarr Media Path: '/data/movies/The Matrix (1999)'
```
Trailarr knows where to find it, so all will work as expected!
Example 4 - Windows users

We used volume mappings like this for Trailarr:
```
services:
  trailarr:
    # Other options here
    volumes:
      - trailarr_data:/config # Docker volume for appdata, the first part `trailarr_data` is the volume name
      - M:\Movies:/m/movies   # Movies drive
      - R:\TV:/r/tv           # TV series drive 1
      - S:\TV:/s/tv           # TV series drive 2
      - T:\TV:/t/tv           # TV series drive 3
    restart: unless-stopped

volumes:
  trailarr_data:  # volume name, should match the volume name in the service
    # Any extra options for the volume if needed
```
- The root folder for Radarr connection is /m/movies or under that folder!
- The root folders for Sonarr connection are:
  - /r/tv
  - /s/tv
  - /t/tv
Navigate to the appropriate folder and press Confirm!
Example 5 - Non-Docker Radarr/Sonarr

Since Radarr and Sonarr are Non-Docker installations, we don't have any volume mappings for them, so we created some, now we need to tell Trailarr where to find them!

If we used something like this
```
services:
  trailarr:
    # Other options here
    volumes:
      - /docker/appdata/trailarr:/config # appdata
      - /mnt/disk1/movies:/media/movies # Movies Folder
      - /mnt/disk2/tv:/media/tv # TV Folder
    restart: unless-stopped
    # Other options here
```
- The root folder for Radarr connection is /media/movies or under that folder!
- The root folder for Sonarr connection is /media/tv or under that folder!
Navigate to the folder and press Confirm!

So, when Trailarr gets a Movie folder path it will use the Path Mapping to convert it like this
```
Radarr Media Path: '/mnt/disk1/movies/The Matrix (1999)'
Trailarr Media Path: '/media/movies/The Matrix (1999)'
```
Trailarr knows where to find it, so all will work as expected!

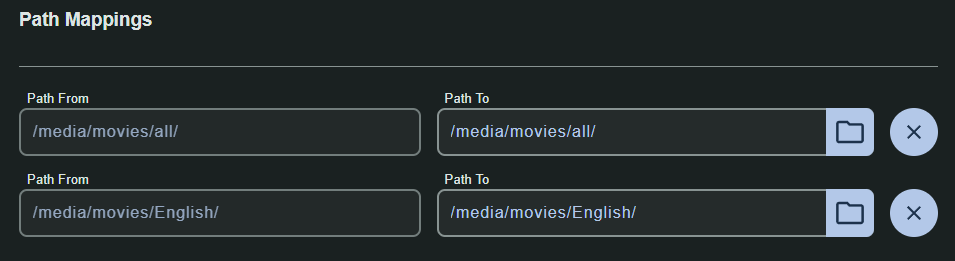

Once all Path Mappings are filled out, you should have something like below, you can move on to next step!

Crucially, ensure that each "Path From" is correctly mapped to its corresponding location in Trailarr's file system.

Warning

Volume Mappings used during Installation and Path Mappings are connected to each other - Whenever you modify the Volume Mappings you need to update the relevant Connection to update the Path Mappings as well!

3. Validate & Submit

Once you have updated the "Path To" for all root folders, the Test button will become enabled again.
Click this button. Trailarr will now attempt to validate these path mappings by checking if it can access them.
The server will return a result indicating success or failure.

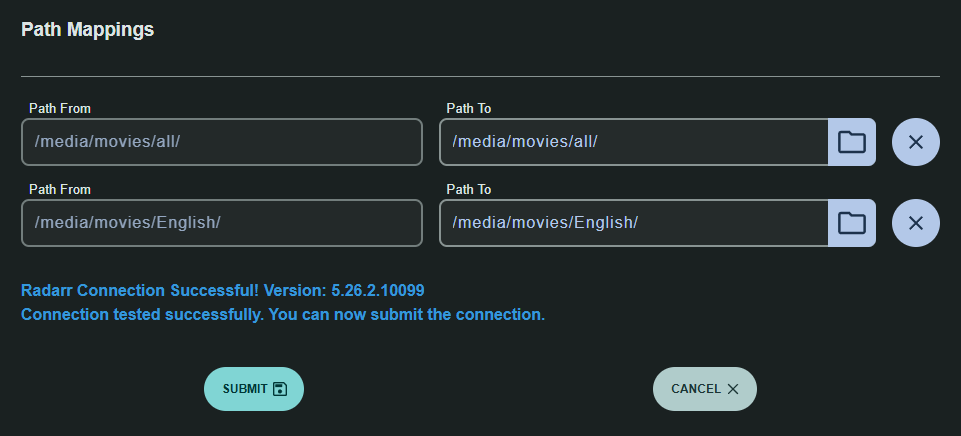

If all mappings are validated successfully, the Test button will change to Submit, click it to save the connection.

You have now successfully added an *Arr connection! Trailarr will begin to sync media information from this instance. 🥳🎉

You can repeat the same steps for other Radarr/Sonarr connections you want Trailarr to monitor!

We are almost done with the seup, just read some information and tips we put together for you in Next Steps.
